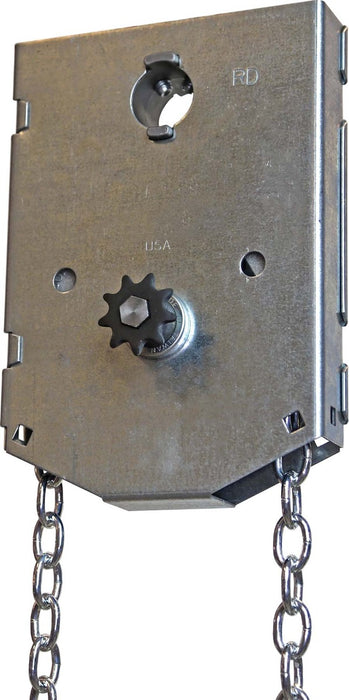

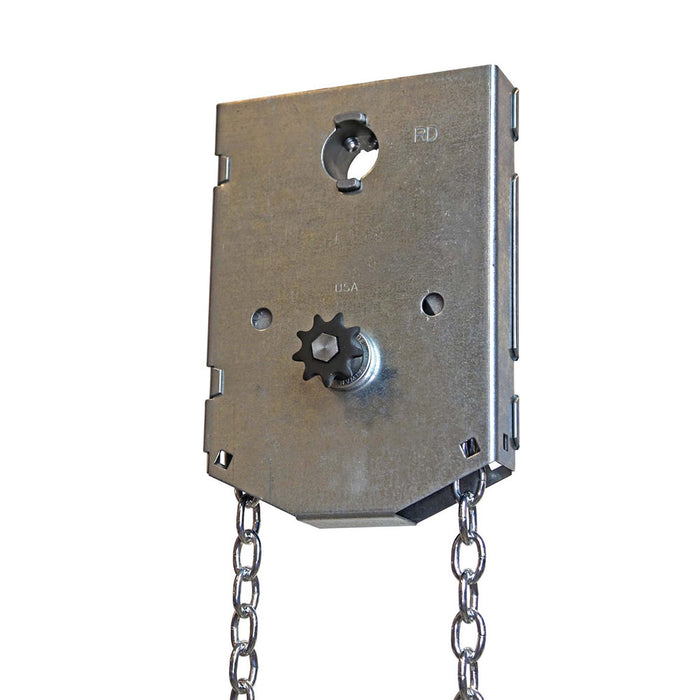

(CH401RDJR516) Chain Hoist, Rolling Sheet Door, 4.4 to 1 Ratio, Chain Sprocket Drive, 1-5/16" Bore

4.4 to 1 Shaft Mounted Rolling Sheet Door Chainhoist w/Chain/Sprocket Drive- 1-1/4" Shaft

4.4 to 1 Reduced Drive Chain for Rolling Sheet Doors
Reduced Drive for 1-5/16" Shaft
Needs 3-7/16" Minimum Offset

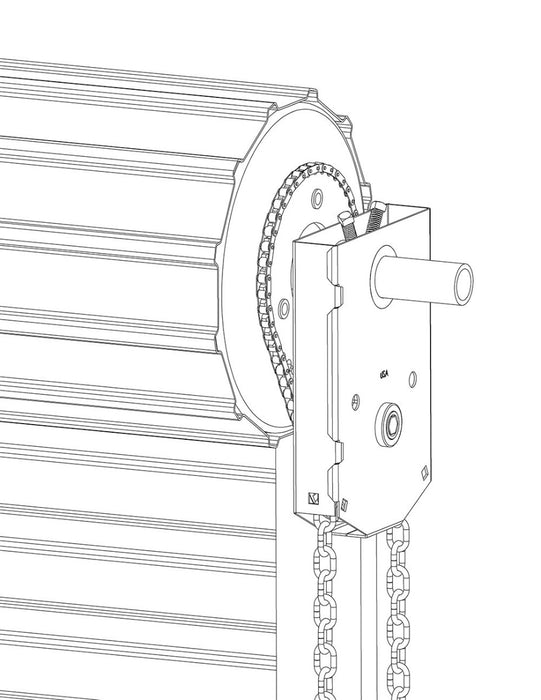

Shaft Mounting
External Chain/Sprocket Drive
Standard Hand Chain Handles Up To 15' High Standard Lift Door. To extend chain, see our Hand Operated Chain Hoist Chain, Per Ft.
Reduces Effort Required to Manually Open Your Rolling Steel Sheet Garage Door Operation

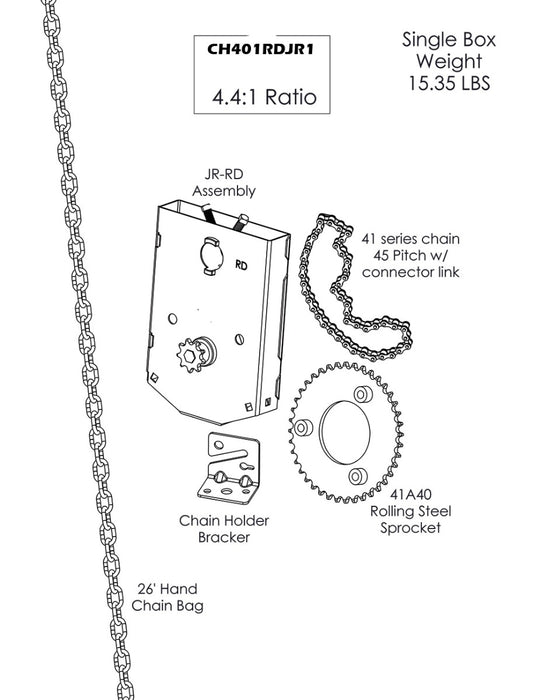

Includes:
1- 40 Tooth x #41 Mounted Sprocket
23" - #41 Roller Chain
26' - Hand Chain
1- Chain Keeper Bracket

Type: Shaft Mounting
Pull Load Hand Chain: 40 lbs. Max.
