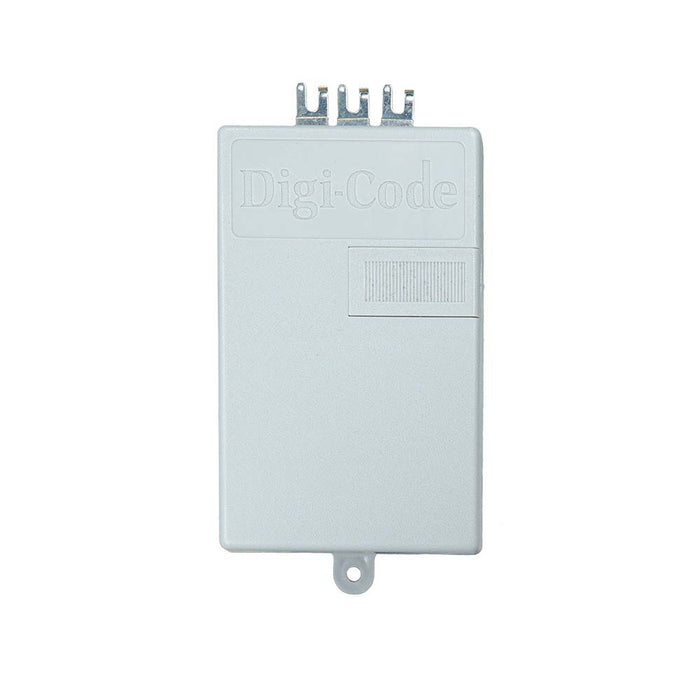

(DC-5100D) Digi-Code 300/310 MHz Dual Frequency Receiver
SKU
Original price
$44.31
-
Original price
$44.31
Original price
$44.31
$44.31
-
$44.31
Current price
$44.31
Availability:
in stock, ready to be shipped
The Digi-Code DC-5100D replaces both legacy DC-5100 and DC-5102 models, giving you greater range, less inventory, and seamless compatibility. American Garage Door Supply is proud to be your source of opener controls for over 35 years.

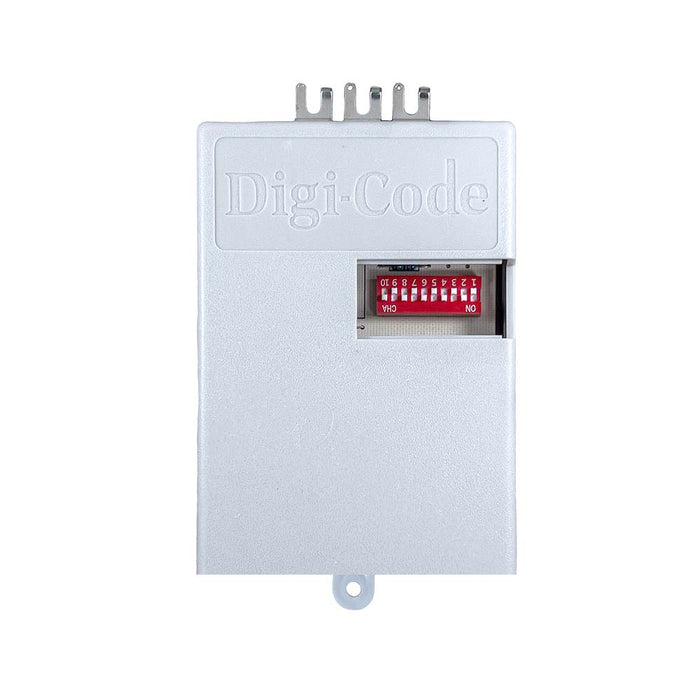

One channel allows control of one garage door opener. Digital format with 10 dip switches, 1,024 possible code combinations.
Specifications
- Part Number: DC-5100D
- Frequencies: 300 MHz / 310 MHz (user selectable)
- Input Voltage: 12 V or 24 V AC/DC (auto-detect)
- Terminal Style: 3-tab screw terminals
- Dimensions: 6” L × 3.125” W × 1.25” H
- Antenna Connector: Attached 10" Wire
What’s in the Box
- DC-5100D dual-frequency receiver
- Quick-start guide
Ideal Applications
- Retrofits on commercial overhead doors, swing gates, or slide gates
- New installations where frequency requirements may change over time
Additional Product Specifications
- Substitute For
- 109020/309013
- Product Code
- DC-5100D
- Frequency
- 300/310 MHz
- Compatibility
- Multi Code: 1089, 3089, 3089-11, 3089-13, 1094, 1094-10, 1097, 1097-10, 4120, 4120-01, 4140, 4140-01, 1082, 1082-10, 3060, 3060-10, 3070-10, 3083, 3083-01, 3083-02 and the 4200, 4200-01, 2986, and 2986-01 wireless keypads. Linear: MCS308911, MCS412001, MCS414001, MCS306010, MCS307010, MCS308301, and MCS420001 Digi Code: 5010, 5012, 5030, 5032, 5040, 5042, 5060, 5062, 5200, 5202, 5072 and 5070 MultiElmac: 3089 Eagle: EG 140, EG 144, EG 148 AND EG 152
- Color
- Gray
- Notes
- All compatible with MC 300 mhz
